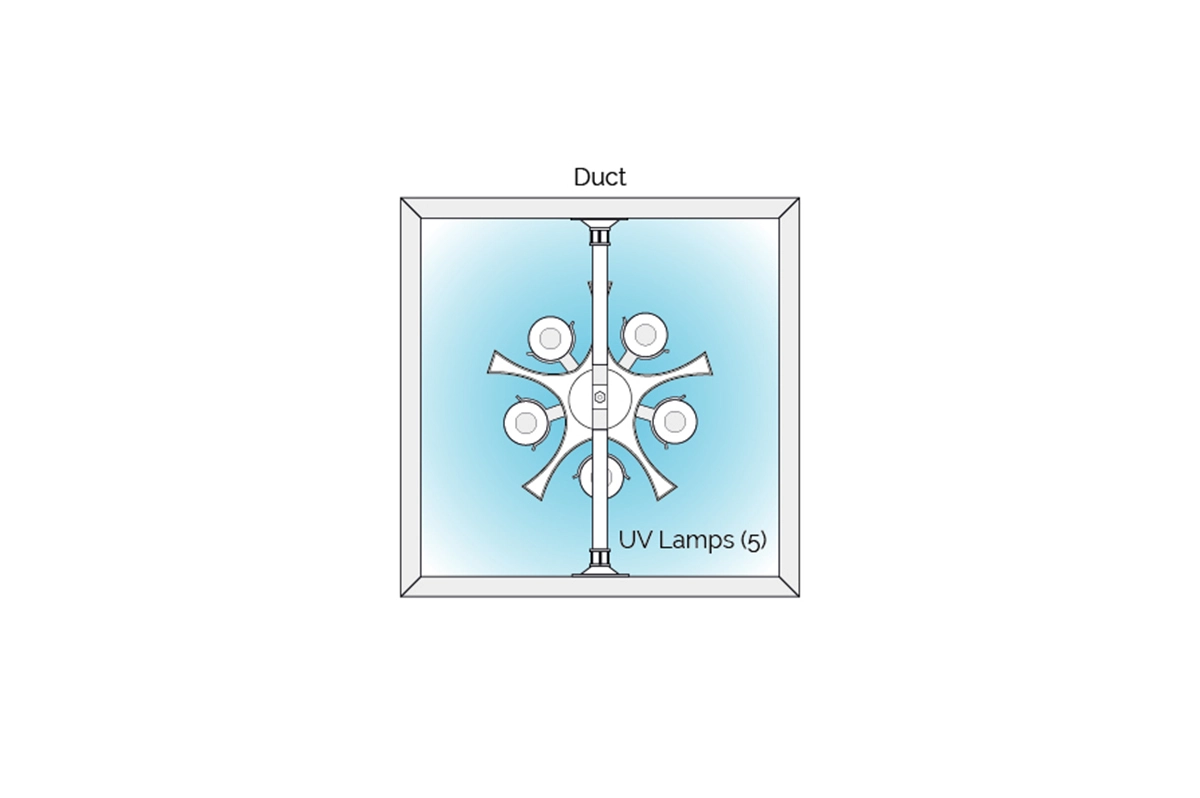

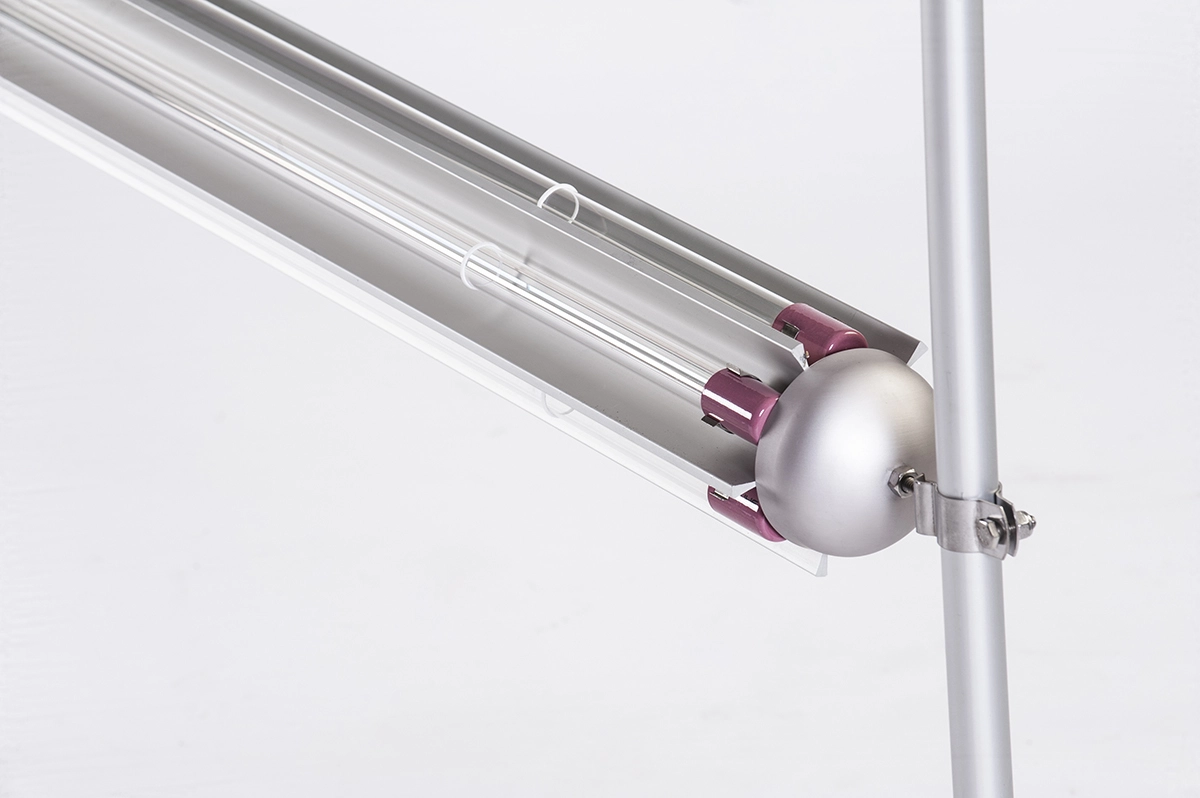

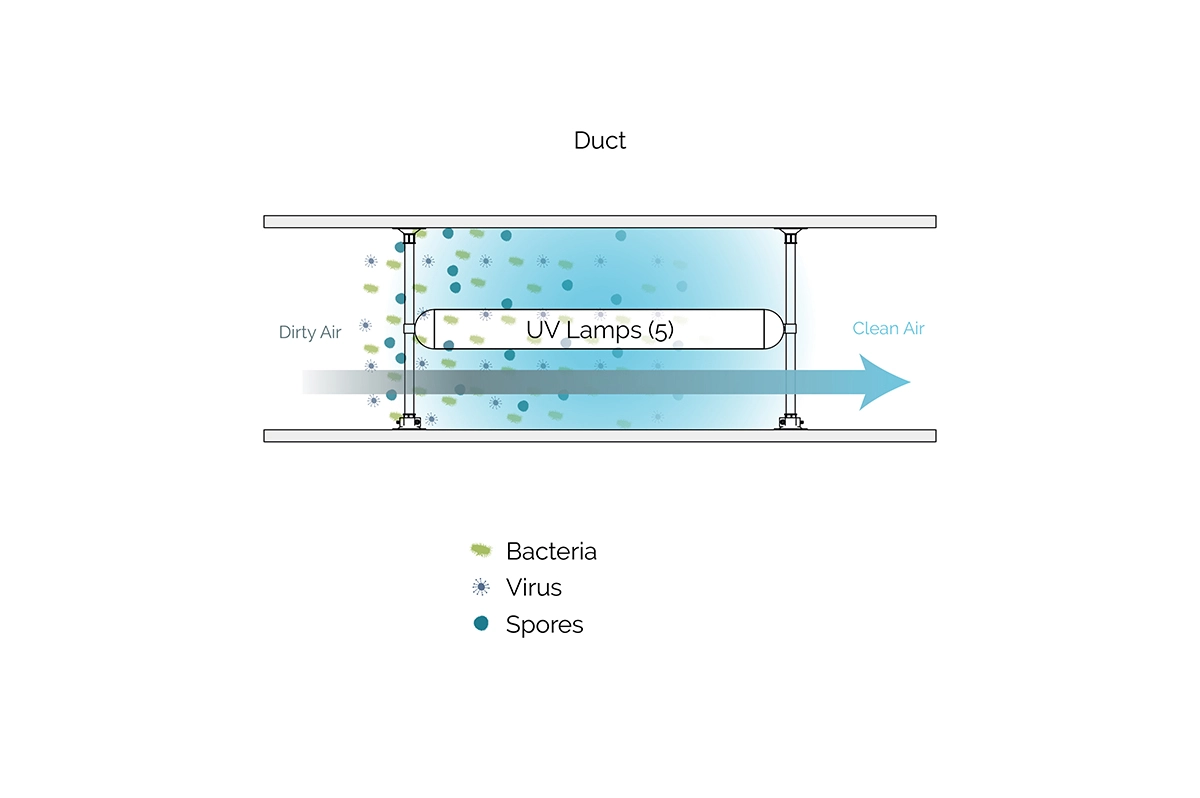

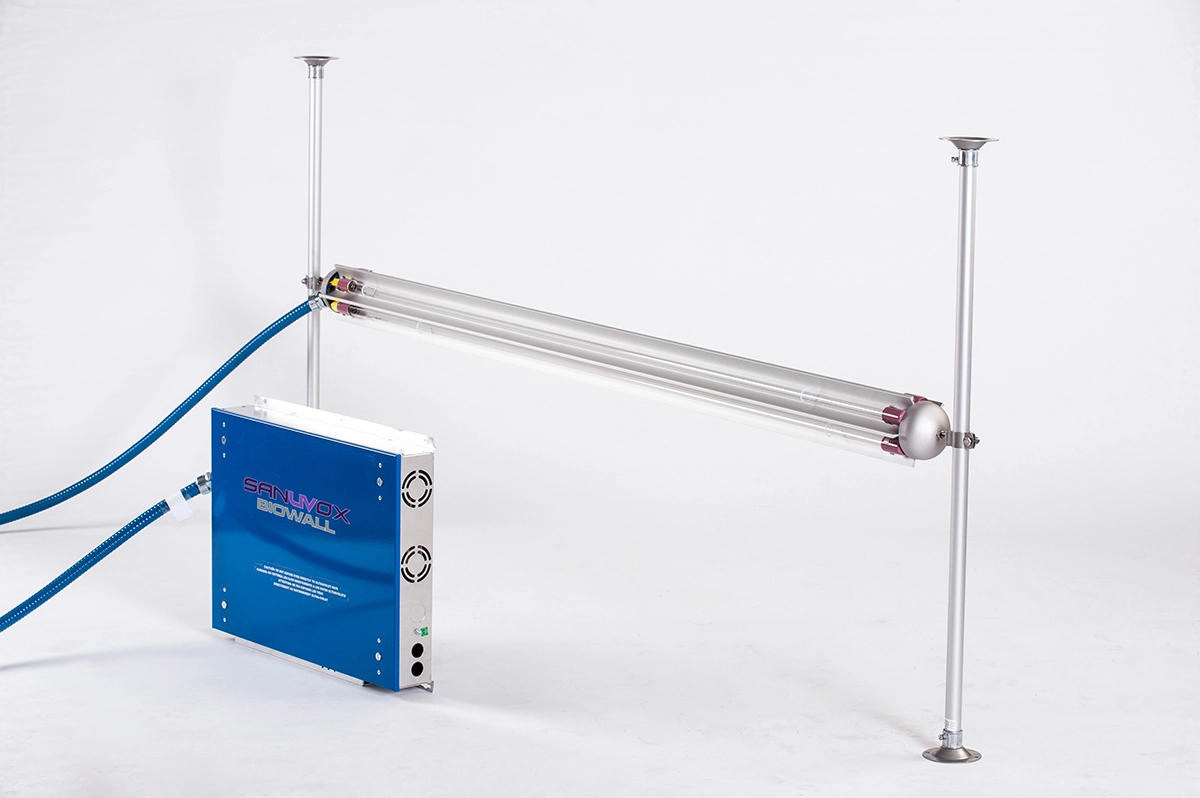

The Bio-Wall™ UV air purification system is installed in the return or supply ducting of an HVAC system. The system is comprised of 5 lamps, each secured in their own parabolic aluminum reflector for maximum UV intensity. In addition, the Bio-Wall™ is installed parallel to airflow to achieve the maximum amount of contact time with the airborne contaminants.
This patented system can be utilized for even the largest air handler units and is sized using Sanuvox proprietary sizing software specific to the facility. It is ideal for any building equipped with a HVAC system.
The ballast/control box is equipped with BMS dry contacts to work with any building automation system.
Bio-Wall™ has been tested under standard ISO 15714:2019 – Method of evaluating the UV dose to airborne microorganisms transiting in-duct UVGI (See document below)
The Bio-WallTM is CARB certified.
Product specs and BIM Models available on
Lamps Length: 18" - 60"
In-duct Installation
Helps reduce germs
CE Certification
